Concrete Canvas Shelters

Postby Whisper » Sun Mar 14, 2010 1:46 pm

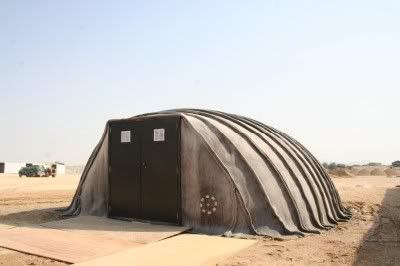

This is the latest form of shelter. It's pretty sweet on the surface. But you can't bury it! At least without adding concrete. It's 4mm thick when done. It's really cool. They have other products that might help as well.



CCS25: $25,259.00 Plus tax
CCS54: $31,600.00 Plus tax


**** Pre Deployment Dimensions:

Unit Length(ft.) Width(ft.) Height (ft.) Weight (lbs).

CCS25 8.5 ft. 7.5 ft. 3.5 ft. 3968 lbs.
CCS54 8.5 ft. 7.5 ft. 4.5 ft. 6834 lbs.

****Post Deployment Dimensions:

CCS25 16.5 ft. 18.5 ft. 8.5 ft. 270 Sq.ft.
CCS54 32.8 ft. 18.5 ft. 8.5 ft. 580 Sq.ft.


Unit Thickness Length(ft.) Width(ft.) Weight (lbs). /sq.ft Price/sq.ft.

CC4 0.16” 65 ft. 3.37 ft. 1.2 lbs./sq.ft. $3.57/sq.ft.

CC8 0.31” 32.8 ft. 3.6 ft. 2.5 lbs./sq.ft. $5.52/sq.ft.

CC13 0.51” up to 236’ 3.6 ft. 3.9 lbs./sq.ft. $6.12/sq.ft.

All rolls come with their handles.
Air tight packaging.

6% sales tax will be assessed.

ALL PRICES: F.O.B. UNITED KINGDOM. Prices to be adjusted per British Pound fluctuation at
Time of purchase. Also, U.S customs charges will be assessed.

Survival Shelters and Retreats - viewforum.php?f=172Image BOB's & BOV's - viewforum.php?f=170 Image
NC Forum - http://www.NorthCarolinaPreppersNetwork.net"
User avatar
Forum Moderator
Forum Moderator
Posts: 3928
Joined: Thu Jan 21, 2010 7:51 pm
Location: North Carolina
Karma: 49

Re: Concrete Canvas Shelters

Postby Pedro wyoming » Mon May 16, 2011 7:09 am

I am not sure how this applies to concrete canvas, but if you want to make a sculpture of water pouring, try this.

Get acrylic resin and hardener at a craft store examples are shown in the link below.

Mix according to directions and pour into a squeeze bottle such as a dish soap container.

Place the vase in the column and drip the resin onto its mouth slowly. You will notice the resin getting warm in the bottle. This is the exothermic reaction that make it hard. The warmer it is, the faster it cures. The faster it cures, the warmer it gets. This reaction will get away from you if it gets too warm too quick. THis can burn you and will harden in the squeeze bottle.

As the resin pours from the vase, direct a heat source (paint stripper, hair dryer or such) on it. THis will cause the resin to flash cure effectiely "freezing" the resin in place per the exothermic description shown above.

Since you have never worked with epoxy resins, i recommend you practice on some other project to avoid wrecking you vase and column. The resin is very difficult to remove after it has cured if you wreck the first try.

http://www.allcraftsupplies.com/c-7240/ ... resin.html

pedro Wyoming
“It is not the strongest of the species that survives, nor the most intelligent that survives. It is the one that is the most adaptable to change that survives.” Charles Darwin
Iמנא ,מנא, תקל, ופרסי
User avatar
Pedro wyoming
Wyoming Preppers Network
Wyoming Preppers Network
Posts: 3826
Images: 0
Joined: Thu Oct 21, 2010 4:27 pm
Location: central wyoming
Karma: 158

Re: Concrete Canvas Shelters

Postby Crusis » Tue May 17, 2011 12:07 am

quilyee wrote:I have to do a project for college artwork. I chose to do a vase tipped on its side on a column. I wanted to do false water pouring out of the vase and down the side of the pillar, but I have never worked with that resin stuff before. Does anyone have any suggestions on how I might do this? Any help would be great welcome. Thanks.

I read this several times to see if this was a pornbot... I guess not! Welcome to APN, interesting first post.

I have to be able to bury my shelter.... otherwise it doesn't feel like shelter.
-- Home Prepping --

"Those who hammer their guns into plows will plow for those who did not." ~ Thomas Jefferson

-- Grandpappy --
User avatar
Colorado State Moderator
Colorado State Moderator
Posts: 1843
Joined: Thu Jul 08, 2010 2:13 am

Re: Concrete Canvas Shelters

Postby Alaska Rose » Tue Jul 05, 2011 1:06 am

Pricey little shelters, aren't they?
Don't Use A Chainsaw In The Kitchen (Volume 1)
How-To and Cookbook. Butchering, gardening, baking, canning, building a trapper cabin and short autobiography all in one.
https://www.createspace.com/4910851 ....And Then You Die - autobiography
Image Image
User avatar
Alaska Rose
Alaska Preppers Network
Alaska Preppers Network
Posts: 3882
Images: 41
Joined: Fri Jan 08, 2010 11:43 pm
Karma: 56

Re: Concrete Canvas Shelters

Postby kr105 » Mon Apr 09, 2012 12:52 am

They can now be earth bermed.
Pennsylvania State Moderator
Pennsylvania State Moderator
Posts: 2707
Joined: Wed Jun 30, 2010 12:48 pm
Karma: 95

Re: Concrete Canvas Shelters

Postby Rabid » Mon Apr 09, 2012 9:30 am

Too rich for my blood. There are places where you can buy an acre or more of land for that price.
DAMMIT IM MAD spelled backwards is DAMMIT IM MAD
User avatar
Posts: 1823
Images: 0
Joined: Sat Apr 07, 2012 7:53 pm
Location: PA (Central Susquehanna valley)
Karma: 53

Re: Concrete Canvas Shelters

Postby Tinga » Mon Apr 09, 2012 10:16 am

WOW. Looks similar to those concrete domes. They take this HUGE balloon, blow it up, spray insulation on the inside, attach rebar to the foam and concrete on top of that. Except it's a...tent. I'd pass. Save money and buy a shipping container or two.
A woman is like a tea bag- you never know how strong she is until she gets in hot water.
-Eleanor Roosevelt
When the people fear their government, there is tyranny; when the government fears the people, there is liberty.
-Thomas Jefferson

User avatar
Oregon Preppers Network
Oregon Preppers Network
Posts: 1204
Joined: Thu Aug 12, 2010 7:47 pm
Location: Umpqua Valley
Karma: 25

Re: Concrete Canvas Shelters

Postby hunter33 » Fri Aug 31, 2012 8:51 am

Rabid wrote:Too rich for my blood.
here a similar one: http://www.americanpreppersnetwork.net/viewtopic.php?f=172&t=1440Behike 56
There are places where you can buy an acre or more of land for that price.

Totally agree! this is too much for such a shelter! I can marry and have feed 3 children by this amount of money!
Posts: 1
Joined: Fri Aug 31, 2012 8:49 am
Karma: 0

Re: Concrete Canvas Shelters

Postby Iron_Ghost » Sat Sep 22, 2012 12:58 am

There is always ferocrete, you build a supporting structure of wood, steel, bamboo, whatever (as long as it is strong), then cover it with chicken wire, and wire it to the underlying structure, and spread a layer of concrete over it, you can add acrylic hardener admix, etc. They've built ships out of it, talked about supply depots in orbit using it, etc. cheap and strong.
Posts: 6
Joined: Thu Sep 06, 2012 12:05 am
Location: Webster, TX
Karma: 0
